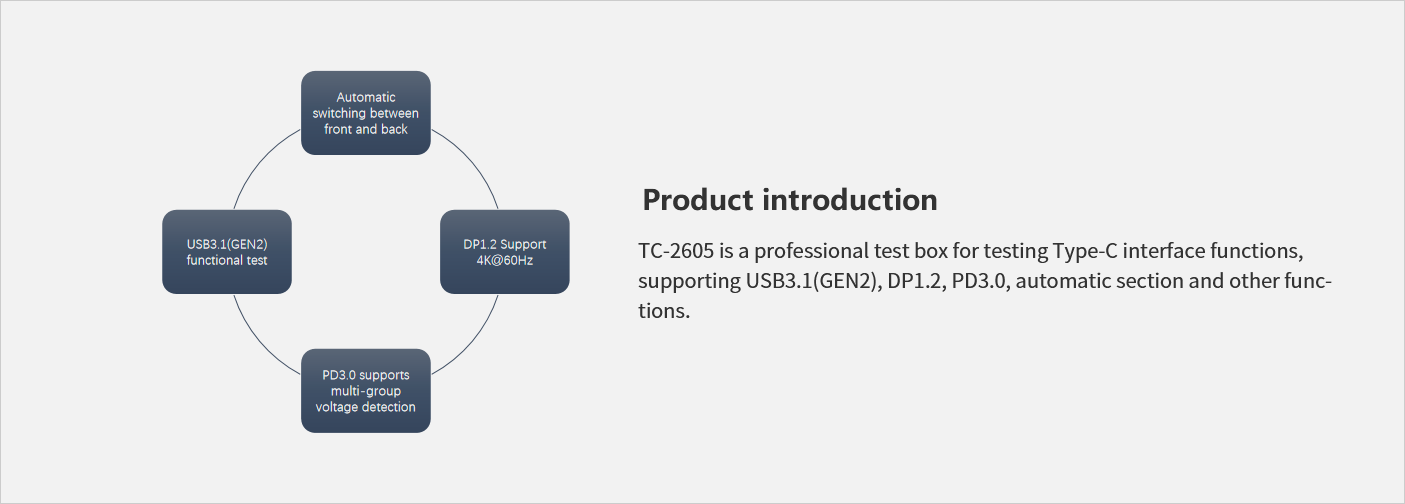

TC-2605 product introduction and features
· Compatible with USB2.0, USB3.1(GEN2) standard protocols | · Support for DP1.2 standard protocol 4K@60Hz |
· Support PD3.0 standard protocol, multiple groups of voltage value detection, the maximum support of 100W | · Support automatic switch back and front test, single insertion, sequentially detect all functions of A/B side |
· Compatible with Linux, Chrome, Windows7, Windows8.0& 8.1, Windows10 operating system | · Graphical interface test, detailed record of test results |
Application field

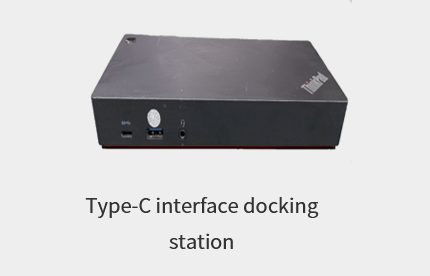

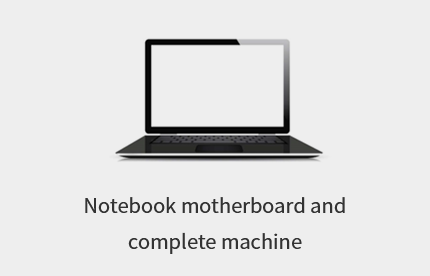

TC-2605 is suitable for functional testing of computer motherboards, server motherboards, docking stations and other products with Type-C interfaces.
 |
|  |

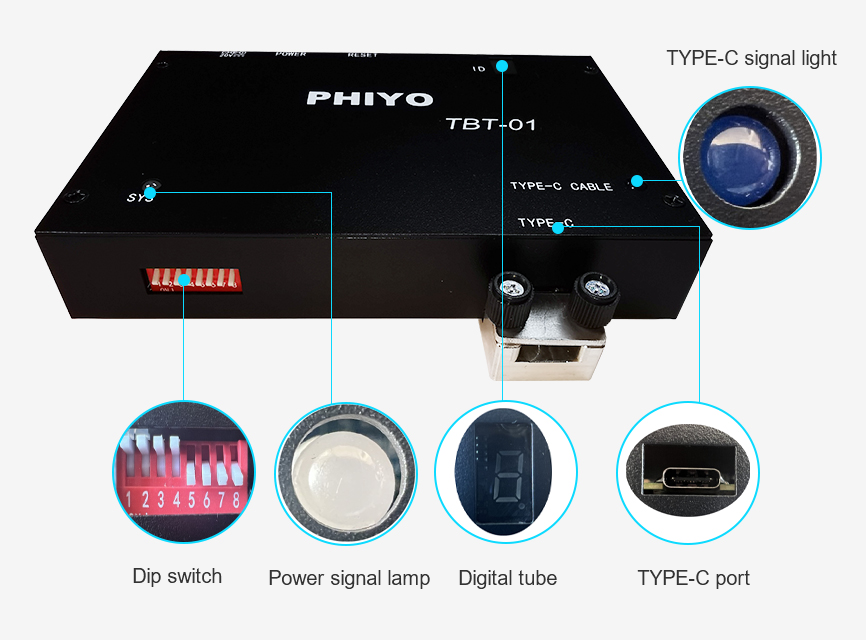

Test the image
Test principle
 |  |
Test item
Test Item | Support | Test Item | Support |
Connection Test | V | USB 3.0 SS | V |
VBUS Detect | V | USB3.1 GEN2 Speed Test | V |
5V 1A/2A/3A Loading Test | V | Reversible Plug Orientation | V |
D+/D- Test | V | DP1.2 Function Test | V |
SSRX/SSTX Test | V | PD3.0 Function Test | V |
INT/BULK/CTRL | V | 5V/9V/12V/15V/20V 3A/3.25A/4A/4.5A/5A Charge | V |
Data Transfer Test | V |
Measured comparison
Test mode | Measured | TC-2065 Test |
USB | Alternate testing with USB3.0 and USB2.0 | One station test USB, DP, PD all functions |
DP | External display for visual inspection | |
PD | Connect the adapter and check the charging status | |
Forward and backward insertion | Manually insert and remove | |
Time spent | 90s | 17s |
Result judgment | Test results are judged artificially | Automatically determine and generate test records |
 |  |
Product model | TC2605 | |
Hardware specification | USB | Type-C |
dimension | Length * width * height: 163mm*10mm*28mm (with fixture) | |
weight | 420g | |
Operating voltage | DC_IN 20V | |
compatibility | Support operating system | Windows 10, windows 8.1, windows 8, windows 7 |
Type-C Indicates interface compatibility | USB 2.0&3.1(GEN1,GEN2), DP 1.2, PD 3.0 | |
Use environment | Operating temperature range | -10℃ to 60℃ |
Operating humidity range | 10% ~ 85% | |
Storage humidity range | 5% ~ 95% | |
Title | Description |
Version Download |
Q1: Does the test card of this interface test product apply the interface standard protocol? |
Compatible with USB2.0, USB3.2(GEN2), DP protocol, PD protocol and other standard protocols. |
Q2: What is the maximum speed supported by this interface tester? |
Maximum USB USB3.2(GEN2) 10Gbps rate detection. |
Q3: What is the charging power tested by this interface tester? |
It can detect the maximum charging power of 100W. |
Q4: What are the DP display parameters supported by this interface tester? |
Maximum support 4K@60Hz. |
Q5: How to test? Do you directly access the port under test for testing? How are test results displayed? |
Directly connected to the machine under test, the test program is installed in the machine under test, and the work of the tester is controlled through the test program. The test program displays and records the test results. |
Q6: What are the advantages of the interface tester compared with the traditional measurement method? |
Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation. |
Q7: Interface tester supports Windows operating system, does it support Linux? |
Compatible with Linux, Chrome, Windows7/8, 8.1/10/11 operating systems, Tongxin UOS. |
Q8: Does the interface tester have test log records? How to output? |
Display test results quickly and accurately, generate detailed test log, can be connected to MES system, traceable record. |
Q9: Is the program setup complicated before starting the test? Is it necessary for your company's professionals to set and debug? |
Graphical interface testing, configuration procedures more simplified, clear, zero base fast configuration quickly start. |
Q10: How long is the hardware guarantee for your interface tester? Does the software need to be updated regularly? Do I have to pay for the software upgrade? |
The hardware is usually guaranteed for one year. There is no need to upgrade software when the machine type is compatible and the test is stable. Our customers enjoy the VIP rights of lifelong free software upgrade. |
Q11: Can you cooperate with automation companies to implement port automated testing? |
Our tester has cooperated with a number of automation companies, to achieve factory end I/O interface automated testing, testing stability. |
Q12: Does Type-C interface need to be manually switched between front and back when PHIYO Technology interface tester is used? |
No manual switch, support automatic switch back and forth test, single insertion, sequence detection of all functions on both sides. |
Q13: What is the testing principle of your company's interface tester? |
The test program issues the command, the tester negotiates through the interface under test, the internal chip analyzes and outputs the result on the upper computer software. |
Q14: Is the wire supporting your company's interface tester consumable? Can you replace it with a universal wire? |
Due to the test box supporting wire plug and pull, there is a certain service life. The wire supporting the test box is specially customized by our company, which is convenient to cooperate with the test. It is not recommended to use other wires. |
>
