·  BC1.2 protocol (CDP) detection is supported, and BC1.5A is supported

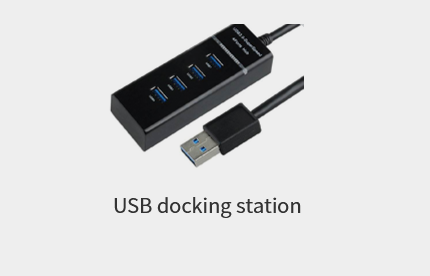

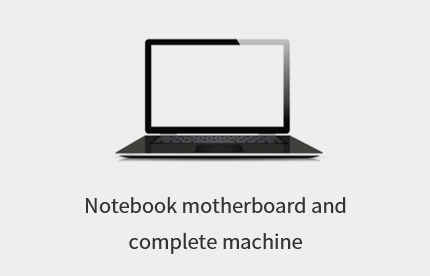

·  The newly-developed device supports the Docking test for PC, NB, HUB, etc

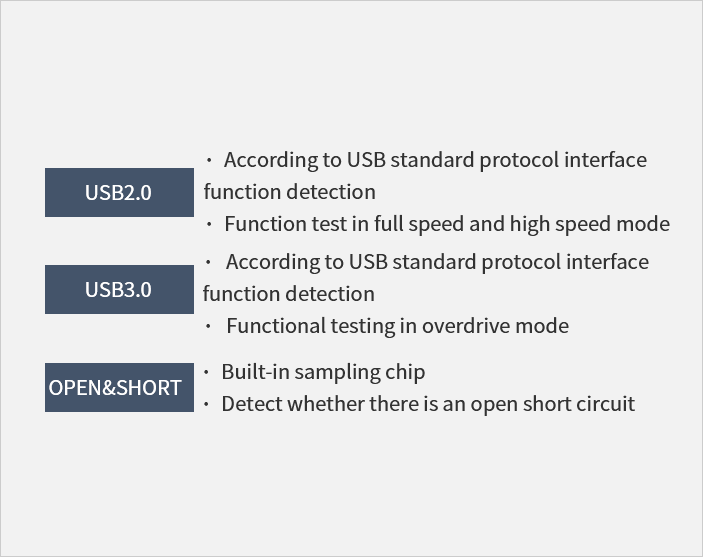

·  Support differential signal open and short circuit test, protect test equipment

·  Graphical interface test, detailed record of test results

Number of interfaces

1

2

4

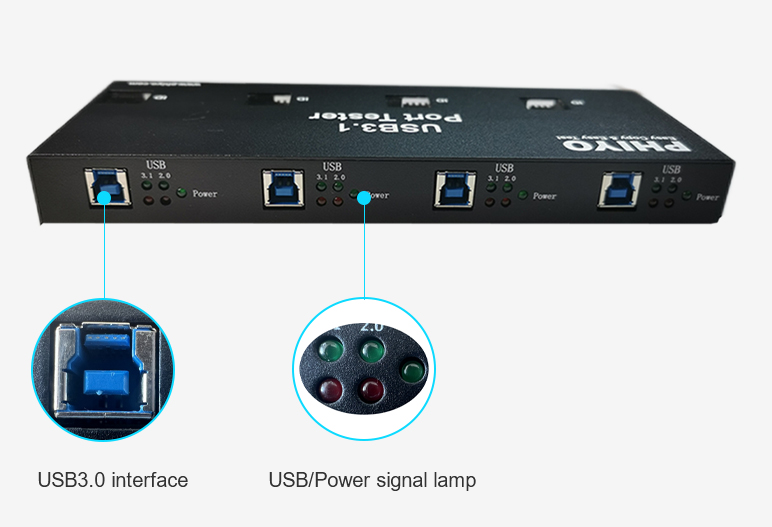

 Interface type

Usb 3.0B

Usb 3.0B

Usb 3.0B

dimension

80mm*63mm*25mm

112mm*79mm*25mm

212mm*79mm*25mm

weight

165g

280g

520g

Input voltage

5 V (+ / - 0.25 V)

Use environment

Temperature :-10 ~ 60℃

Humidity :10% ~ 80%(no condensation)

Version

Download

V01

 Click Download

This USB interface tester is compatible with USB1.1, USB2.0, USB3.2(Gen1) standard protocols.

Q2: Does this USB interface test product need external power supply?

No, just a USB3.0 data cable for communication and power supply.

Q3: How many USB ports can a USB interface tester test?

This USB interface tester has three fixed interface configurations, which are single-port module, two-port module and four-port module. And supports up to 16 ports for simultaneous access testing.

Q4: How to test? Do you directly access the port under test for testing? How are test results displayed?

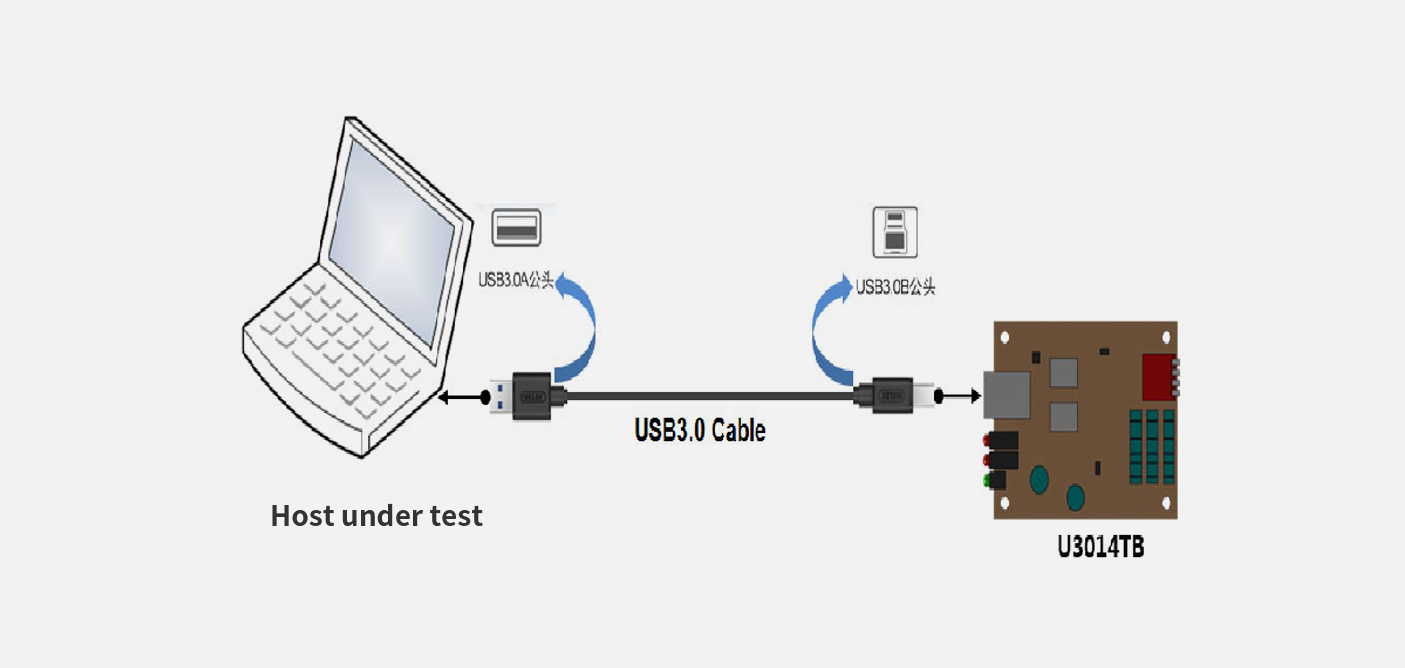

Directly connected to the machine under test, the test program is installed in the machine under test, and the work of the tester is controlled through the test program. The test program displays and records the test results.

Q5: What are the advantages of the interface tester compared with the traditional measurement method?

Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation.

Q6: The interface tester supports the Windows operating system. Does it support Linux?

Compatible with Linux, Chrome, Windows7/8, 8.1/10/11 operating systems, Tongxin UOS.

Q7: Does the interface tester have test log records? How to output?

Display test results quickly and accurately, generate detailed test log, can be connected to MES system, traceable record.

Q8: Is the program setup complicated before starting the test? Is it necessary for your company's professionals to set and debug?

Graphical interface testing, configuration procedures more simplified, clear, zero base fast configuration quickly start.

Q9: How long is the hardware guarantee for your interface tester? Does the software need to be updated regularly? Do I have to pay for the software upgrade?

The hardware is usually guaranteed for one year. There is no need to upgrade software when the machine type is compatible and the test is stable. Our customers enjoy the VIP rights of lifelong free software upgrade.

Q10: Can you cooperate with automation companies to realize automated port testing?

Our tester has cooperated with a number of automation companies, to achieve factory end I/O interface automated testing, testing stability.

Q11: What is the testing principle of your company's interface tester?

The test program issues the command, the tester negotiates through the interface under test, the internal chip analyzes and outputs the result on the upper computer software.

Q12: Is the wire supporting your company's interface tester consumable? Can you replace it with a universal wire?

Due to the test box supporting wire plug and pull, there is a certain service life. The wire supporting the test box is specially customized by our company, which is convenient to cooperate with the test. It is not recommended to use other wires.
