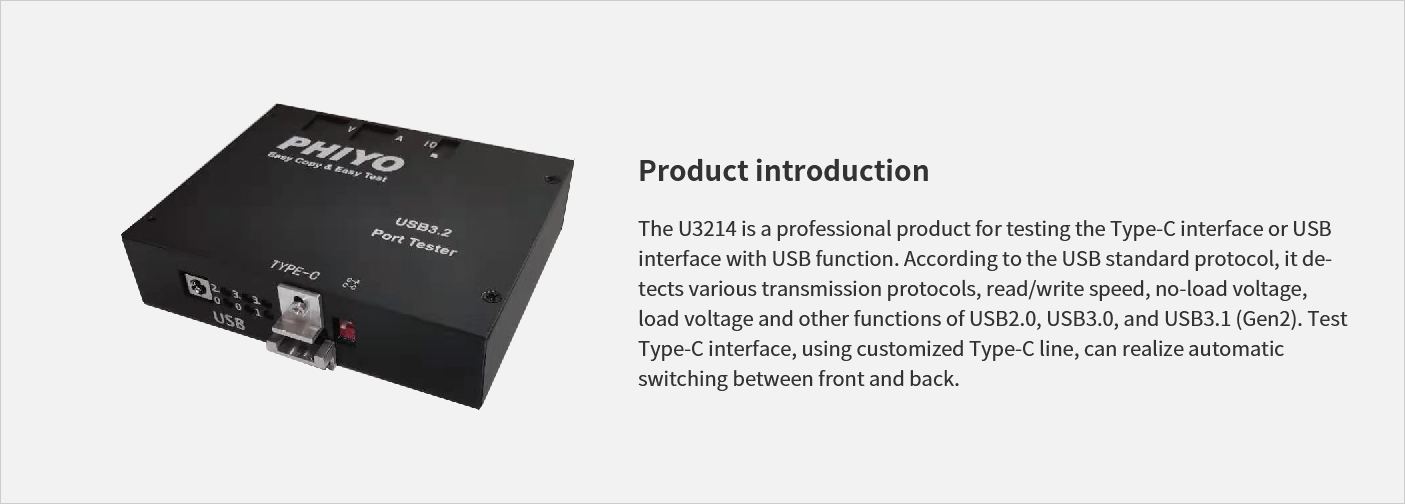

Product introduction
Product characteristics

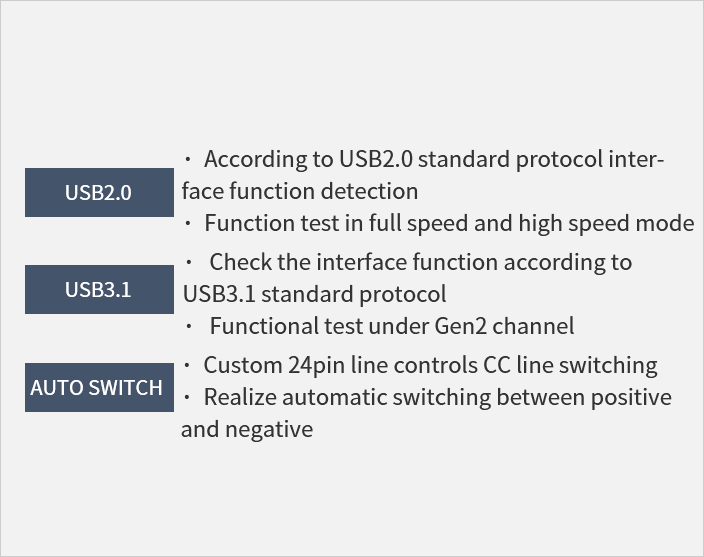

· Compatible with USB standard protocol | · Supports the highest USB3.1 (Gen2) function detection |
· Compatible with Linux, Chrome, Windows7, 8, 8.1, and 10 operating systems | · Supports the test of Type-C and USB physical interfaces |
· The Docking supports device testing on PC, NB, HUB, or Monitor | · Graphical interface test, detailed record of test results |
Application field
Suitable for PC motherboard, notebook computer, monitor, USB 3.1 hub, expansion dock, etc.
 |
|
|  |

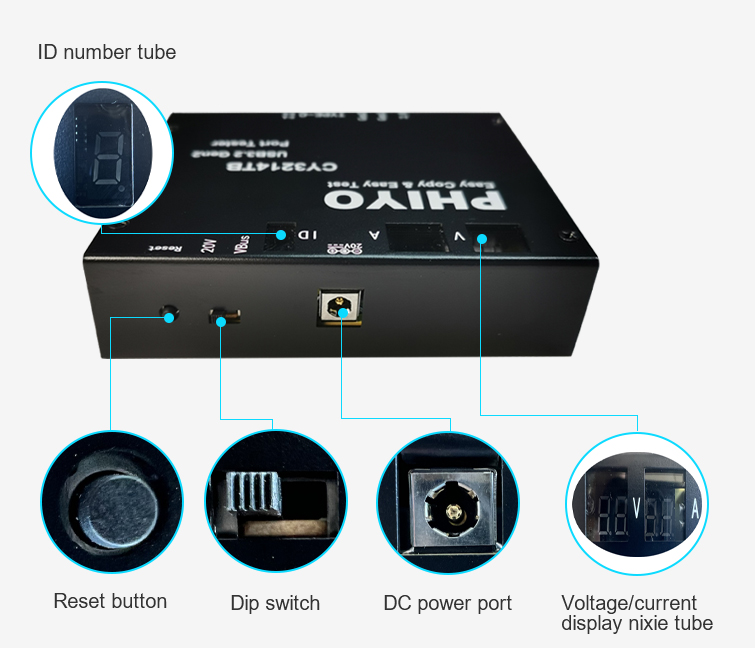

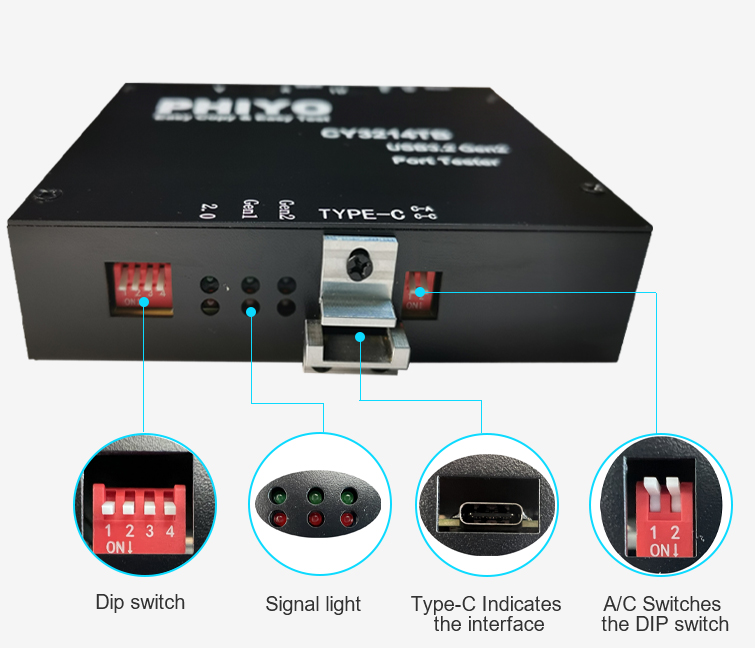

Test the image
Test principle
 |  |
Test item
Test Item | Support | Test Item | Support |
VBUS Detect | V | USB 2.0&3.0 R/W Speed Test | V |
D+/D- Test | V | USB 2.0 FS/HS | V |
SSRX/SSTX Test | V | USB 3.0 SS | V |
INT/BULK/CTRL/ISO | V | 5V 500mA/900mA Loading Test | V |
Data Transfer Test | V | USB3.1 GEN2 Speed Test | V |
Measured comparison
Test mode | Measured | U3214BC Test |
USB2.0 | An external USB2.0 device is connected | Automatic testing of USB2.0, 3.1 (Gen2), support a maximum of 16 ports |
USB3.1 | External USB3.1 device | |
Coverage | Identification equipment | Test according to USB standard protocol |
Time spent | Single port 25s | Single mouth 5s |
Result judgment | Test results are judged artificially | Automatically determine and generate test records |
 |  |
Product model | USB3214 | |
Hardware specification | USB | Type-C |
dimension | Length * width * height: 125mm*103mm*31mm | |
weight | 365g | |
Operating voltage | 5 V (+ / - 0.25 V) | |
compatibility | Support operating system | Windows 10, windows 8.1, windows 8, windows 7 |
Type-C/USB interface compatibility | USB 2.0&3.2(GEN1,GEN2) | |
Use environment | Operating temperature range | -10℃ to 60℃ |
Operating humidity range | 10% ~ 85% | |
Storage humidity range | 5% ~ 95% | |
Title | Description |
Version Download |
Q1: Does the test card of this USB interface test product turn off the USB standard protocol? |
This USB interface tester is compatible with USB2.0, USB3.2(Gen1 / Gen2) standard protocols. |
Q2: Does this USB interface test product need external power supply? |
No, just a USB3.0 data cable for communication and power supply. The DC20V external power supply port is also reserved |
Q3: This USB interface test product comes with Type-C. Does it support the test of USB Type-A interface? |
Supports USB Type-C&Type-A physical interface test. You can test the USB Type-A interface by connecting the USB Type-C to A port |
Q4: How to test? Do you directly access the port under test for testing? How are test results displayed? |
Directly connected to the machine under test, the test program is installed in the machine under test, and the work of the tester is controlled through the test program. The test program displays and records the test results. |
Q5: What are the advantages of the interface tester compared with the traditional measurement method? |
Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation. |
Q6: The interface tester supports the Windows operating system. Does it support Linux? |
Compatible with Linux, Chrome, Windows7/8, 8.1/10/11 operating systems, Tongxin UOS. |
Q7: Does the interface tester have test log records? How to output? |
Display test results quickly and accurately, generate detailed test log, can be connected to MES system, traceable record. |
Q8: Is the program setup complicated before starting the test? Is it necessary for your company's professionals to set and debug? |
Graphical interface testing, configuration procedures more simplified, clear, zero base fast configuration quickly start. |
Q9: How long is the hardware guarantee for your interface tester? Does the software need to be updated regularly? Do I have to pay for the software upgrade? |
The hardware is usually guaranteed for one year. There is no need to upgrade software when the machine type is compatible and the test is stable. Our customers enjoy the VIP rights of lifelong free software upgrade. |
Q10: Can you cooperate with automation companies to realize automated port testing? |
Our tester has cooperated with a number of automation companies, to achieve factory end I/O interface automated testing, testing stability. |
Q11: What is the testing principle of your company's interface tester? |
The test program issues the command, the tester negotiates through the interface under test, the internal chip analyzes and outputs the result on the upper computer software. |
Q12: Is the wire supporting your company's interface tester consumable? Can you replace it with a universal wire? |
Due to the test box supporting wire plug and pull, there is a certain service life. The wire supporting the test box is specially customized by our company, which is convenient to cooperate with the test. It is not recommended to use other wires. |
>
