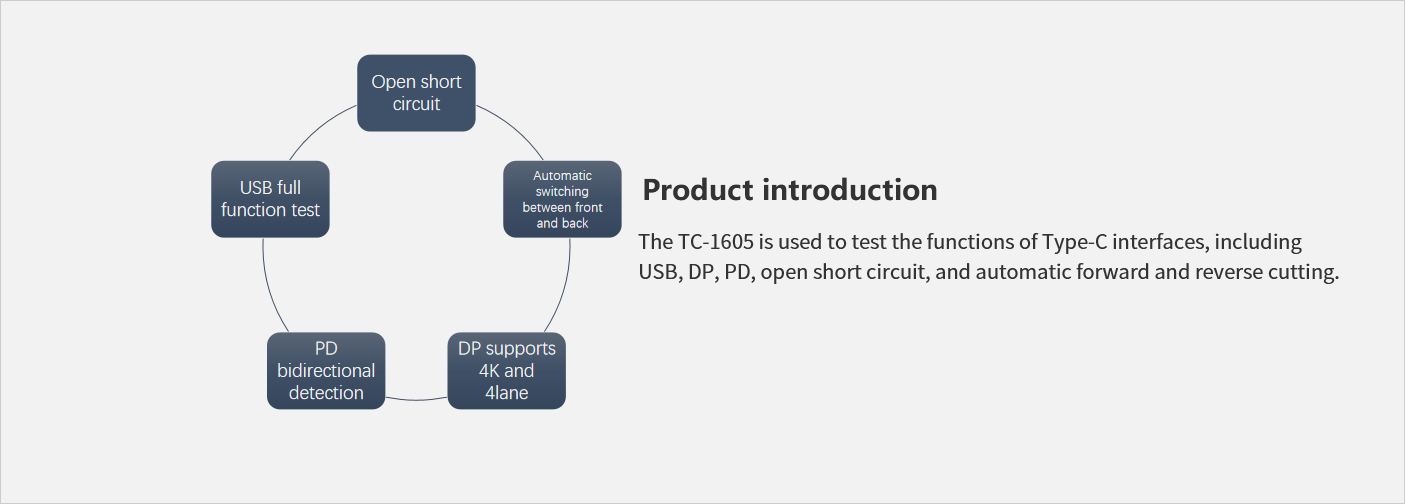

TC-1605 product introduction and features
· Compatible with USB2.0 and USB3.0 standard protocols | · Supports the DP1.2 standard protocol |
· Supports PD2.0 standard protocols | · Support positive and negative insert test, single insert, sequentially test all functions of A/B side |
· Support differential signal & SBU1, SBU2 open short circuit test | · Graphical interface test, detailed record of test results |
Application field
TC-1605 is suitable for functional testing of various types of Type-C interface computer motherboards, server motherboards, and Type-C interface docking stations.
 |
|  |

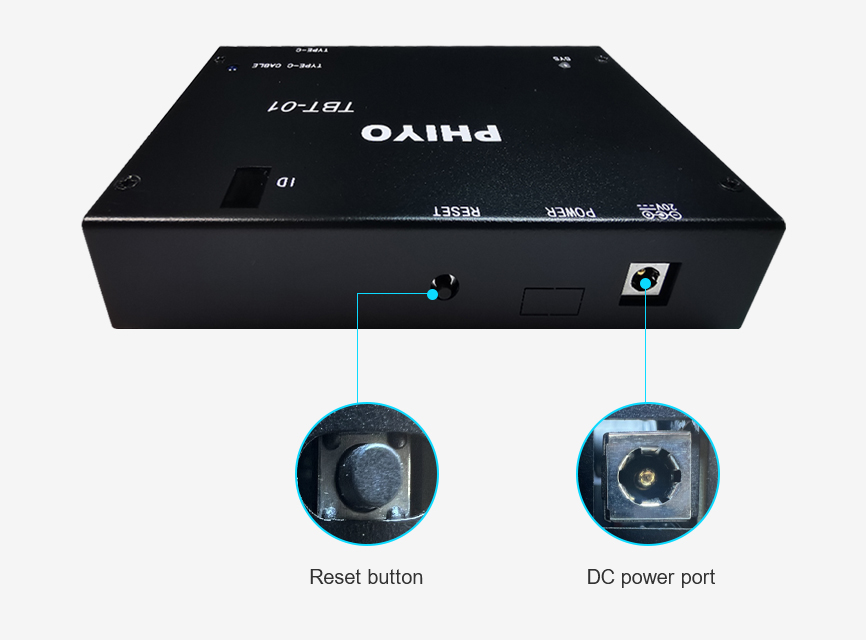

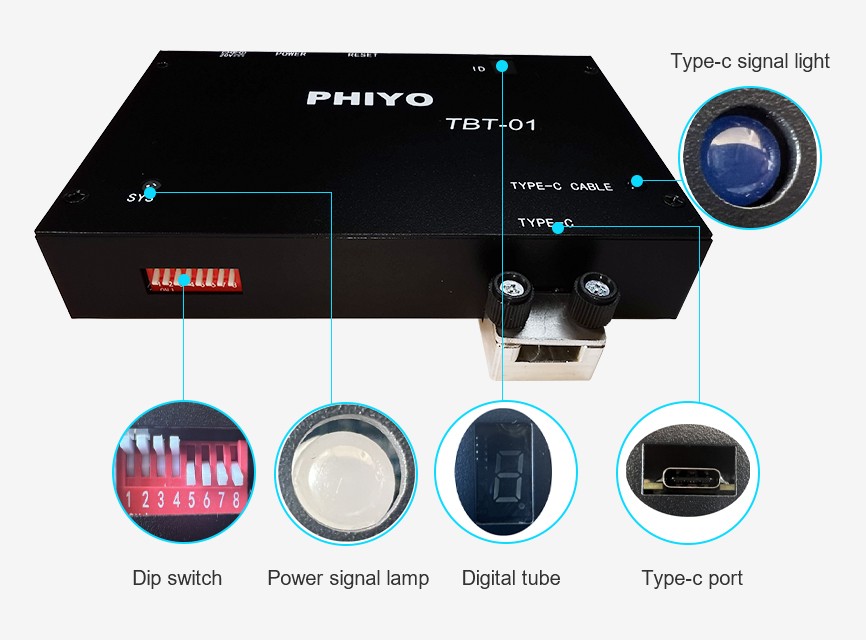

Test the image

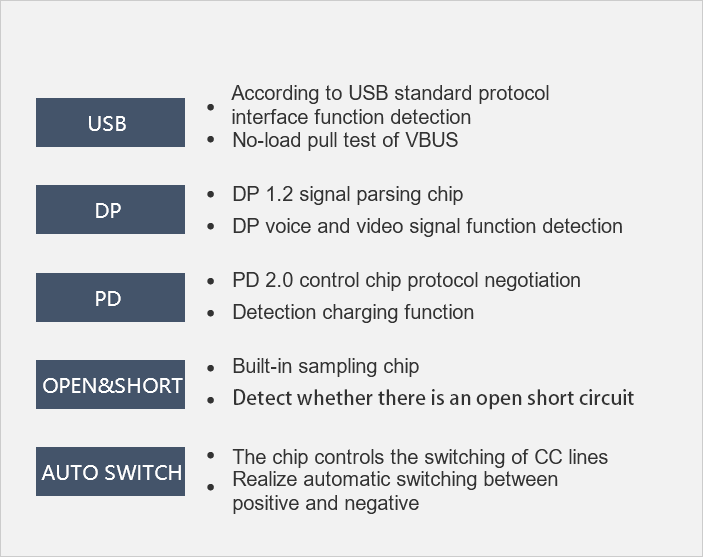

Test principle
 |  |
Test item
Test Item | Support | Test Item | Support |
Connection Test | V | USB 3.0 SS | V |
Disconnection Test | V | USB 3.0 R/W Speed Test | V |
VBUS Detect | V | USB3.1 GEN1 Speed Test | V |
5V 1A/2A/3A Loading Test | V | Reversible Plug Orientation | V |
D+/D- Test | V | DP1.2 Function Test | V |
SSRX/SSTX Test | V | PD2.0 Function Test | V |
INT/BULK/CTRL | V | 5V/9V/15V/20V 3A Charge | V |
Data Transfer Test | V | TX/RX Signals Open/Short Test | V |

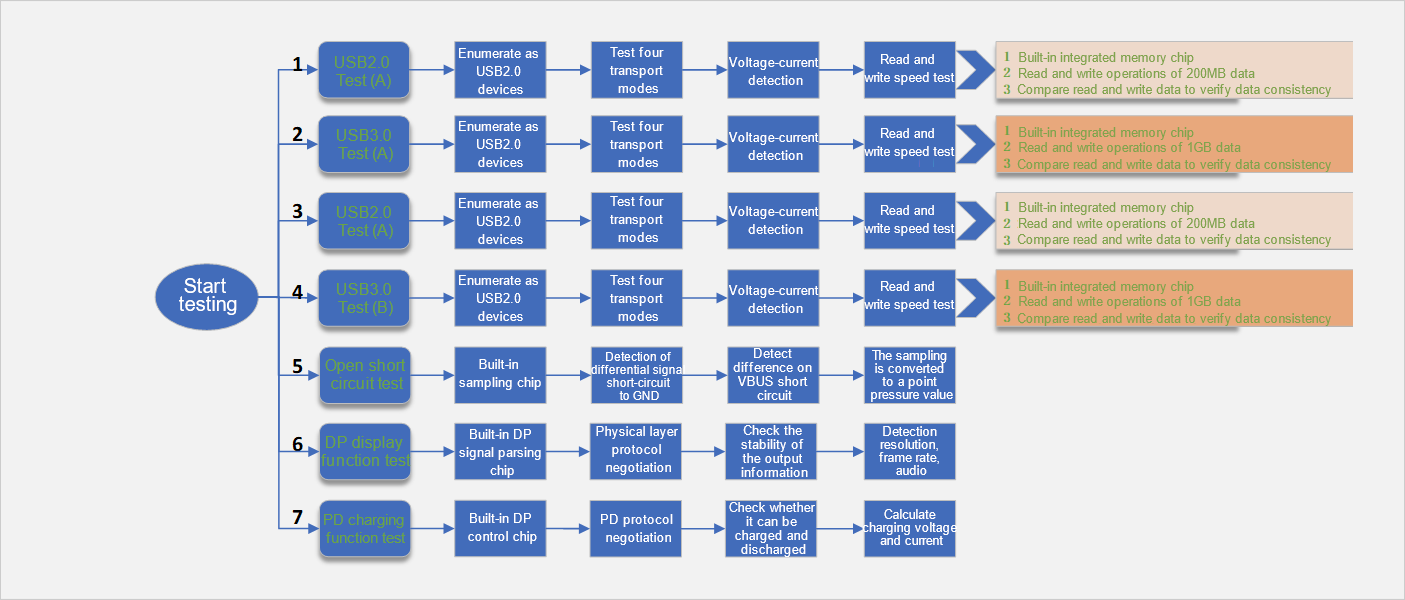

Test process
Measured comparison
Test mode | Measured | TC-1605 Test |
| USB | Alternate testing with USB3.0 and USB2.0 | One stop test Thunderbolt. 3 (compatible with Thunderbolt4), USB, DP, PD all functions |
DP | External display for visual inspection | |
PD | Connect the adapter and check the charging status | |
Forward and backward insertion | Manually insert and remove | |
Time spent | 90s | 17s |
Result judgment | Test results are judged artificially | Automatically determine and generate test records |
 |  |
Product model | TC1605 | |
Hardware specification | USB | Type-C |
dimension | Length * width * height: 130mm*83.5mm*23mm (with fixture) | |
weight | 211.7g (with fixture) | |
Operating voltage | DC_IN 20V | |
compatibility | Support operating system | Windows 10, windows 8.1, windows 8, windows 7 |
Type-C Indicates interface compatibility | USB 2.0&3.2, DP 1.2, PD 2.0 | |
Use environment | Operating temperature range | -10℃ to 60℃ |
Operating humidity range | 10%~85%, no condensation | |
Storage humidity range | 5%~95%, no condensation | |
Title | Description |
Version Download |
Q1: Does the test card of this interface test product apply the interface standard protocol? |
Compatible with USB2.0, USB3.2(GEN1), DP protocol, PD protocol and other standard protocols. |
Q2: What is the maximum speed supported by this interface tester? |
Maximum USB USB3.2(GEN1) 5Gbps rate detection. |
Q3: What is the charging power tested by this interface tester? |
It can detect the maximum charging power of 60W. |
Q4: What are the DP display parameters supported by this interface tester? |
Maximum support 4K@30Hz. |
Q5: How to test? Do you directly access the port under test for testing? How are test results displayed? |
Directly connected to the machine under test, the test program is installed in the machine under test, and the work of the tester is controlled through the test program. The test program displays and records the test results. |
Q6: What are the advantages of the interface tester compared with the traditional measurement method? |
Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation. |
Q7: Interface tester supports Windows operating system, does it support Linux? |
Compatible with Linux, Chrome, Windows7/8, 8.1/10/11 operating systems, Tongxin UOS. |
Q8: Does the interface tester have test log records? How to output? |
Display test results quickly and accurately, generate detailed test log, can be connected to MES system, traceable record. |
Q9: Is the program setup complicated before starting the test? Is it necessary for your company's professionals to set and debug? |
Graphical interface testing, configuration procedures more simplified, clear, zero base fast configuration quickly start. |
Q10: How long is the hardware guarantee for your interface tester? Does the software need to be updated regularly? Do I have to pay for the software upgrade? |
The hardware is usually guaranteed for one year. There is no need to upgrade software when the machine type is compatible and the test is stable. Our customers enjoy the VIP rights of lifelong free software upgrade. |
Q11: Can you cooperate with automation companies to implement port automated testing? |
Our tester has cooperated with a number of automation companies, to achieve factory end I/O interface automated testing, testing stability. |
Q12: Does Type-C interface need to be manually switched between front and back when PHIYO Technology interface tester is used? |
No manual switch, support automatic switch back and forth test, single insertion, sequence detection of all functions on both sides. |
Q13: What is the testing principle of your company's interface tester? |
The test program issues the command, the tester negotiates through the interface under test, the internal chip analyzes and outputs the result on the upper computer software. |
Q14: Is the wire supporting your company's interface tester consumable? Can you replace it with a universal wire? |
Due to the test box supporting wire plug and pull, there is a certain service life. The wire supporting the test box is specially customized by our company, which is convenient to cooperate with the test. It is not recommended to use other wires. |
>
