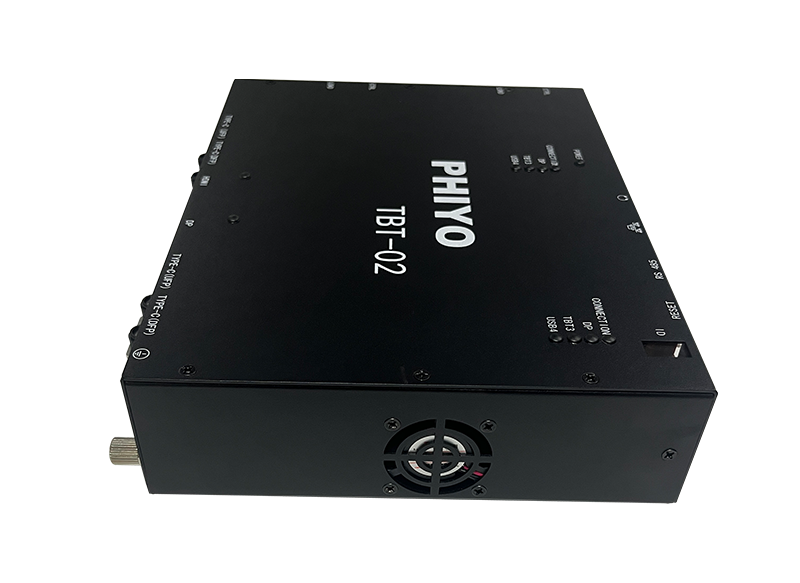

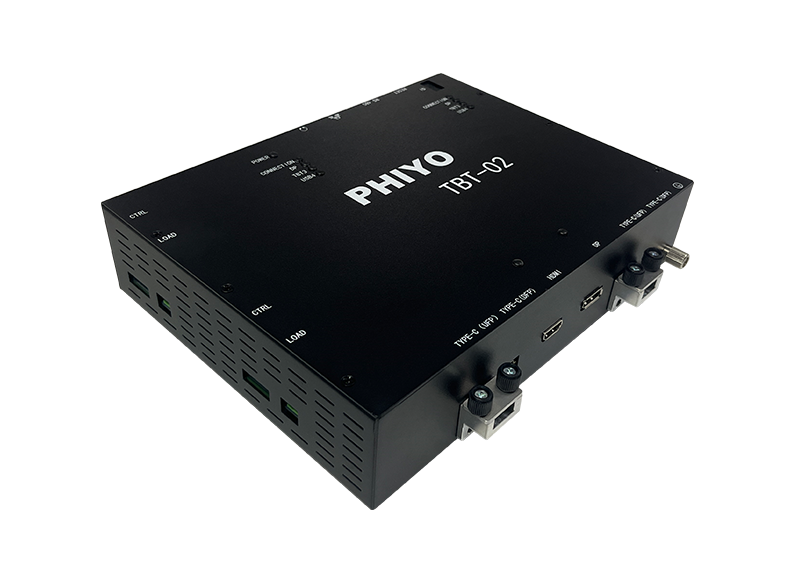

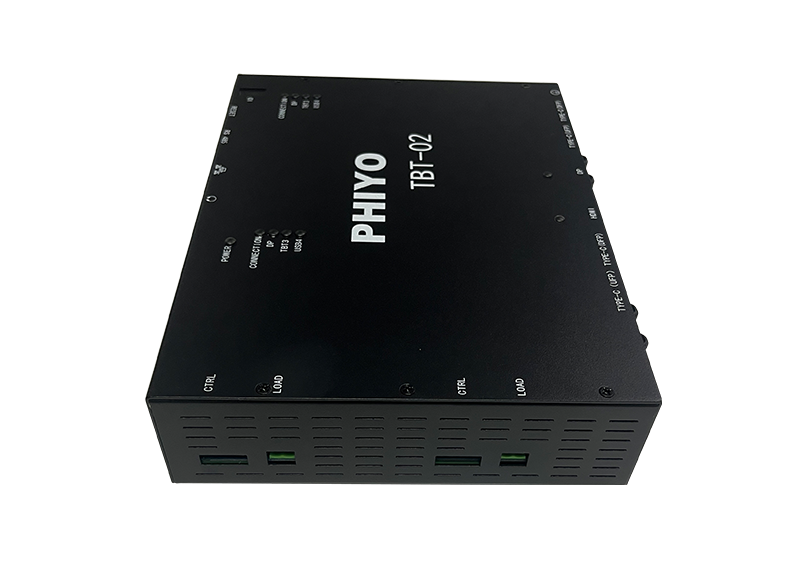

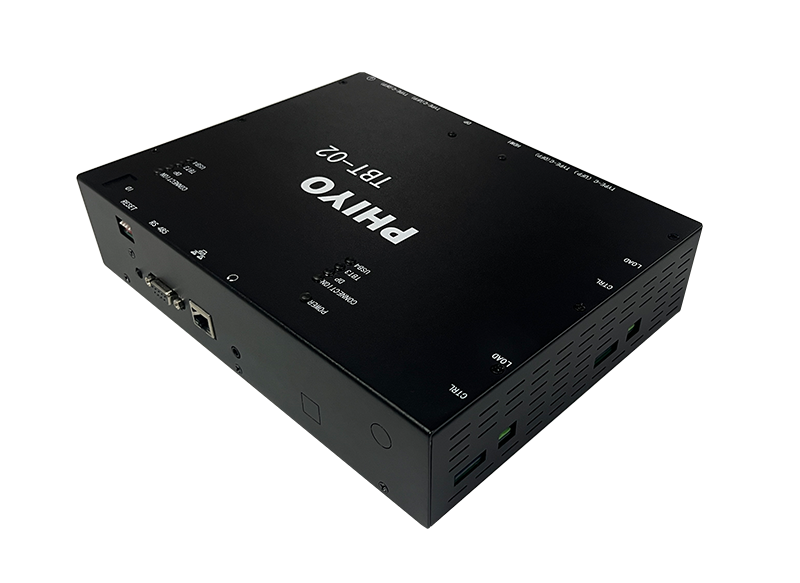

·  Supports DP1.4 (TC) protocol standard, up to support 8K@30HZ / 4K@120HZ Testing of

·  Supports PD3.1 protocol standard, with charging capacity detection of 5V/9V/12V/15V/20V 3A/5A, and maximum support for 24V/5A charging power

·  Dual Type-C interface configuration, designed Type-C DFP interface, supporting access to standard Type-C devices

·  Added testing of HDMI (2.1), DP (1.4), and Audio interface functions

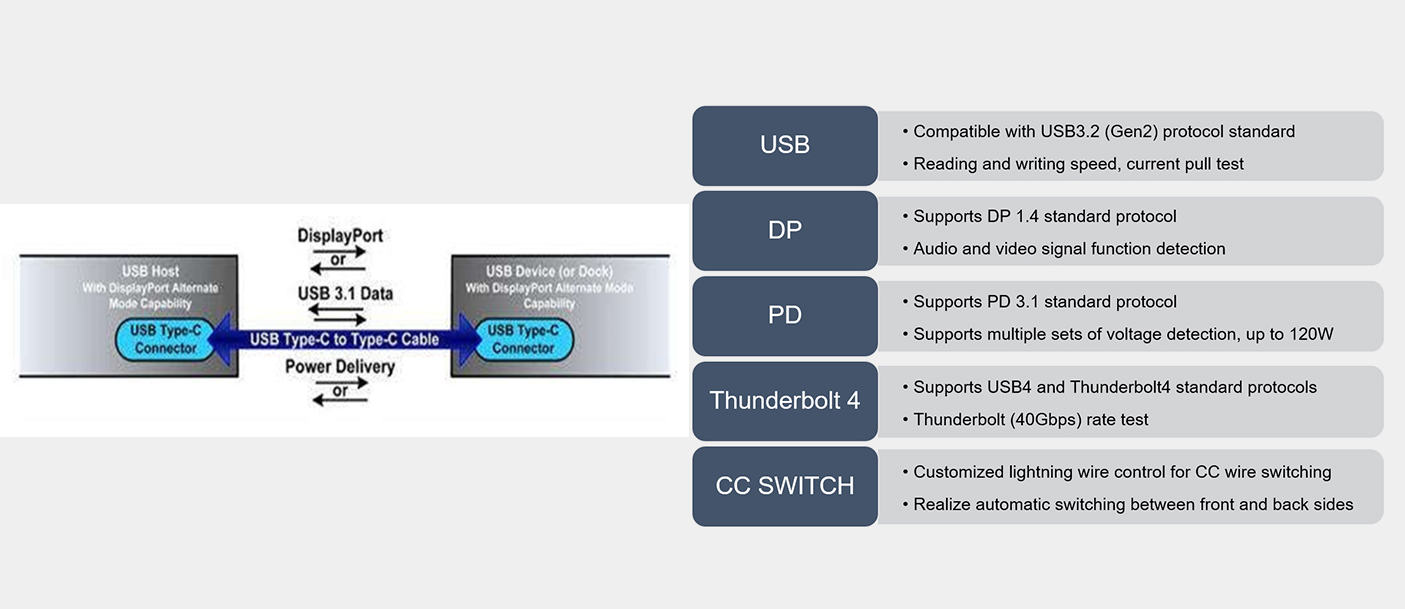

·  The testing covers port connection, data transmission speed, current load capacity, DP signal transmission, PD charging, and A/B double-sided automatic switching

Version

Download

TBT-02(USB4&Thunderbolt4)_V1.0(1).pdf

Click Download

PHIYO Technology interface tester is compatible with USB, Thunderbolt, DP, PD and other standard protocols.

Q2: What is the maximum speed supported by this interface tester? Is USB4.0 testing supported?

Thunderbolt 40Gbps; USB4.0 testing is supported.

Q3: What is the charging power tested by this interface tester?

It can detect the maximum charging power of 100W.

Q4: What are the DP display parameters supported by this interface tester?

Maximum support 8K@30HZ/4K@120HZ

Q5: How to test? Do you directly access the port under test for testing? How are test results displayed?

Directly connected to the machine under test, the test program is installed in the machine under test, and the work of the tester is controlled through the test program. The test program displays and records the test results.

Q6: What are the advantages of the interface tester compared with the traditional measurement method?

Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation.

Q7: Interface tester supports Windows operating system, does it support Linux?

Compatible with Linux, Chrome, Windows7/8, 8.1/10/11 operating systems, Tongxin UOS.

Q8: Does the interface tester have test log records? How to output?

Display test results quickly and accurately, generate detailed test log, can be connected to MES system, traceable record.

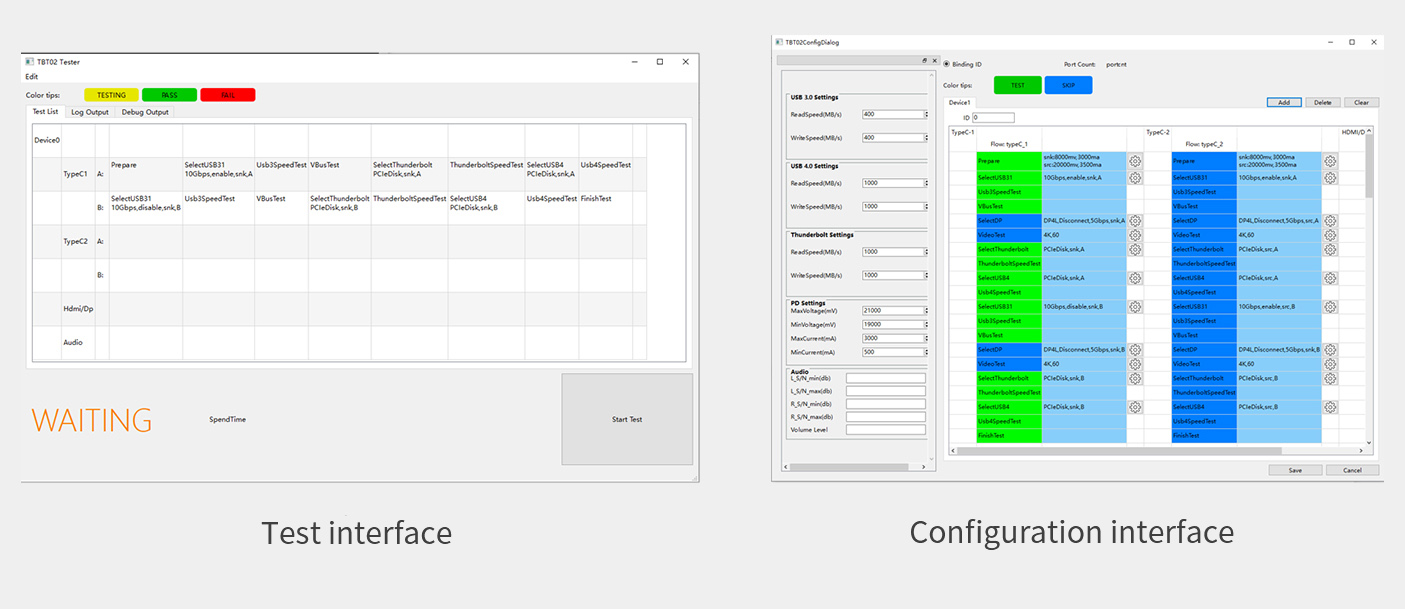

Q9: Is the program setup complicated before starting the test? Is it necessary for your company's professionals to set and debug?

Graphical interface testing, configuration procedures more simplified, clear, zero base fast configuration quickly start.

Q10: How long is the hardware guarantee for your interface tester? Does the software need to be updated regularly? Do I have to pay for the software upgrade?

The hardware is usually guaranteed for one year. There is no need to upgrade software when the machine type is compatible and the test is stable. Our customers enjoy the VIP rights of lifelong free software upgrade.

Q11: Can you cooperate with automation companies to implement port automated testing?

Our tester has cooperated with a number of automation companies, to achieve factory end I/O interface automated testing, testing stability.

Q12: Does Type-C interface need to be manually switched between front and back when PHIYO Technology interface tester is used?

No manual switch, support automatic switch back and forth test, single insertion, sequence detection of all functions on both sides.

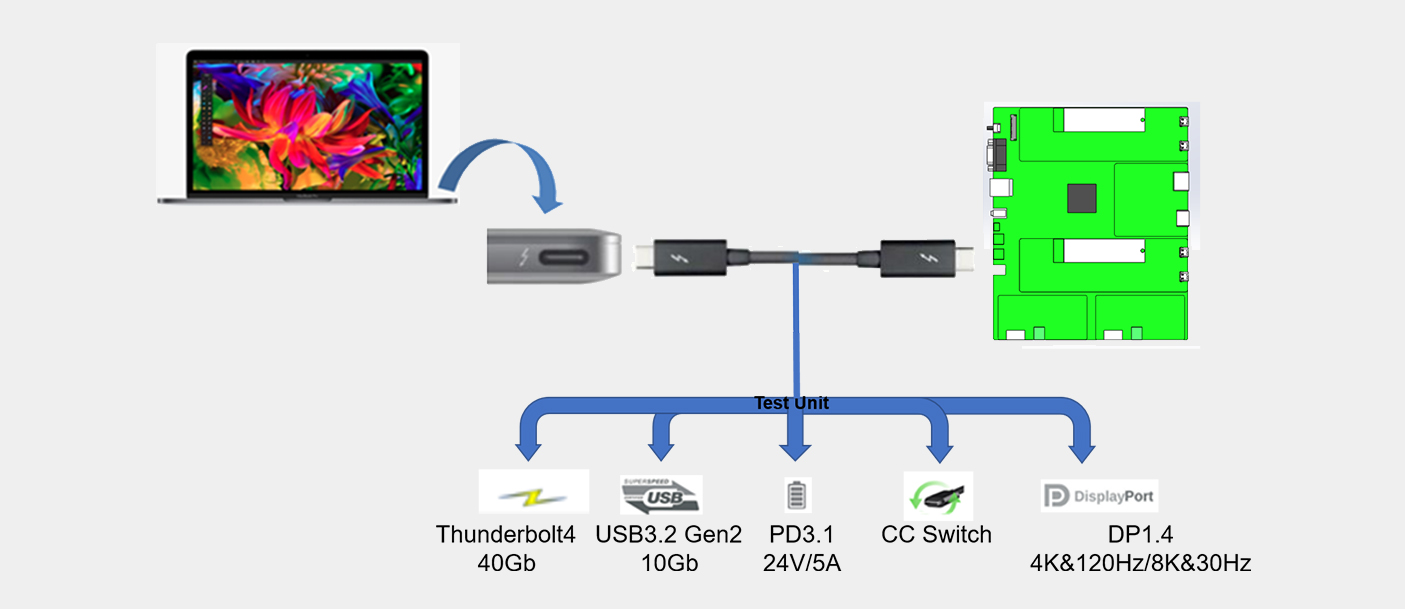

Q13: What is the testing principle of your company's interface tester?

The test program issues the command, the tester negotiates through the interface under test, the internal chip analyzes and outputs the result on the upper computer software.

Q14: Is the wire supporting your company's interface tester consumable? Can you replace it with a universal wire?

Due to the test box supporting wire plug and pull, there is a certain service life. The wire supporting the test box is specially customized by our company, which is convenient to cooperate with the test. It is not recommended to use other wires.
