Product introduction and features of TC-1606S
· Windows10 system interface, one button restore system, ensure the smooth system | · Embed PD test board to detect PD charging function of external device |
· Type-C interface board modular design, easy to replace supplies | · Seamless interface test box, intelligent test, record test results |
Application field

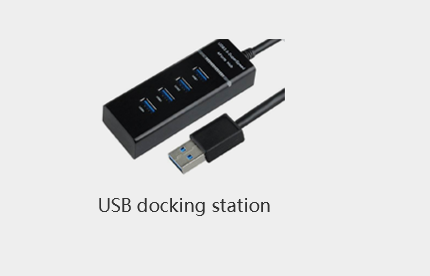

Suitable for monitor motherboard and whole machine, hub, docking.
 |
|  |

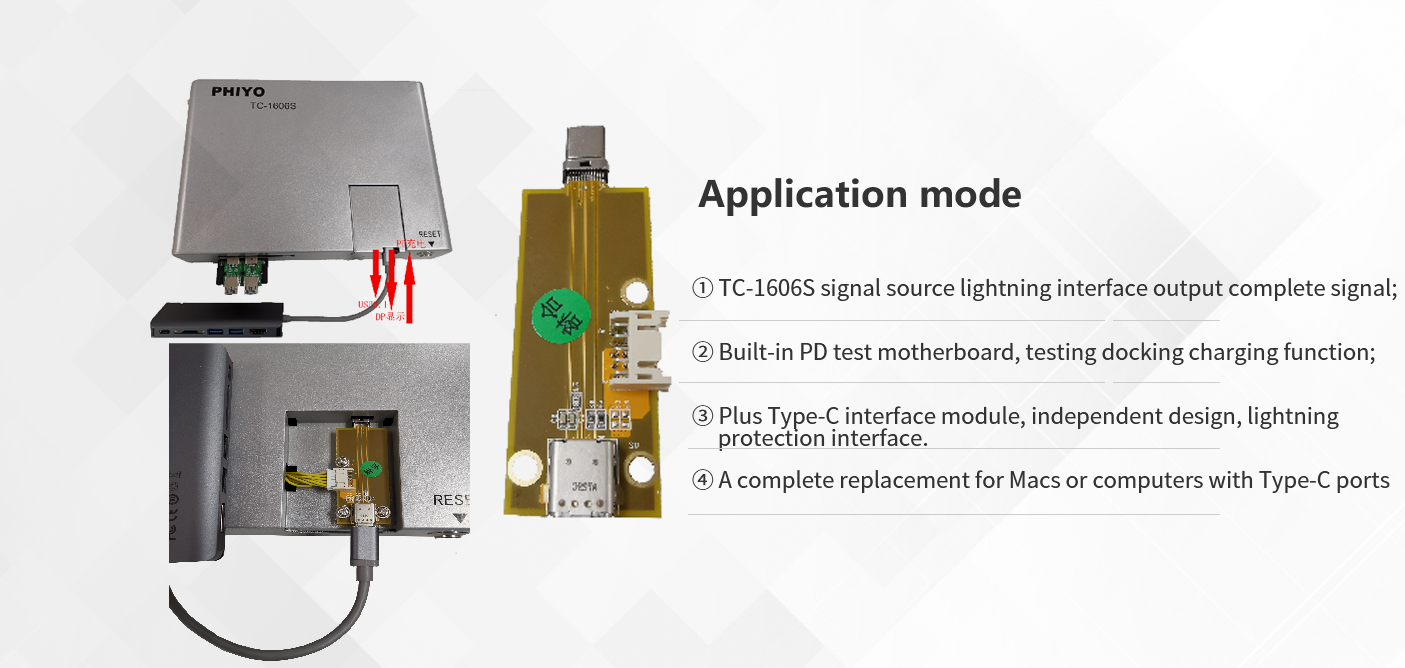

Application mode
|
|
Product name | TC-1606 | |
Hardware specification | USB | start |
DP | DP1.2 | |
PD | PD2.0 | |

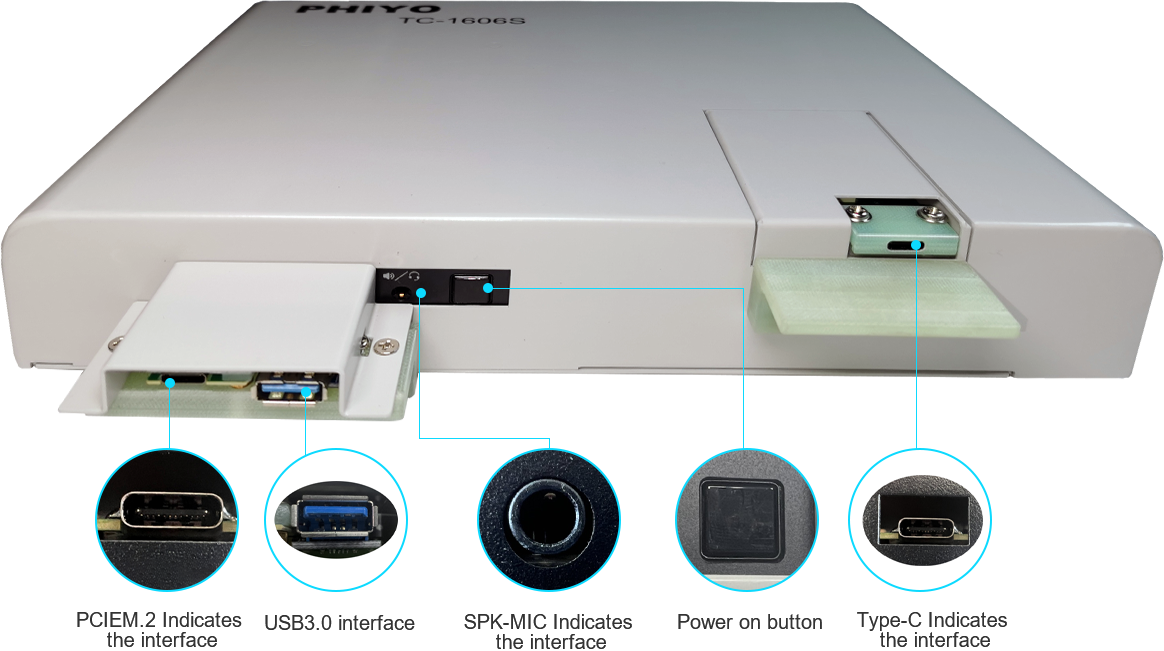

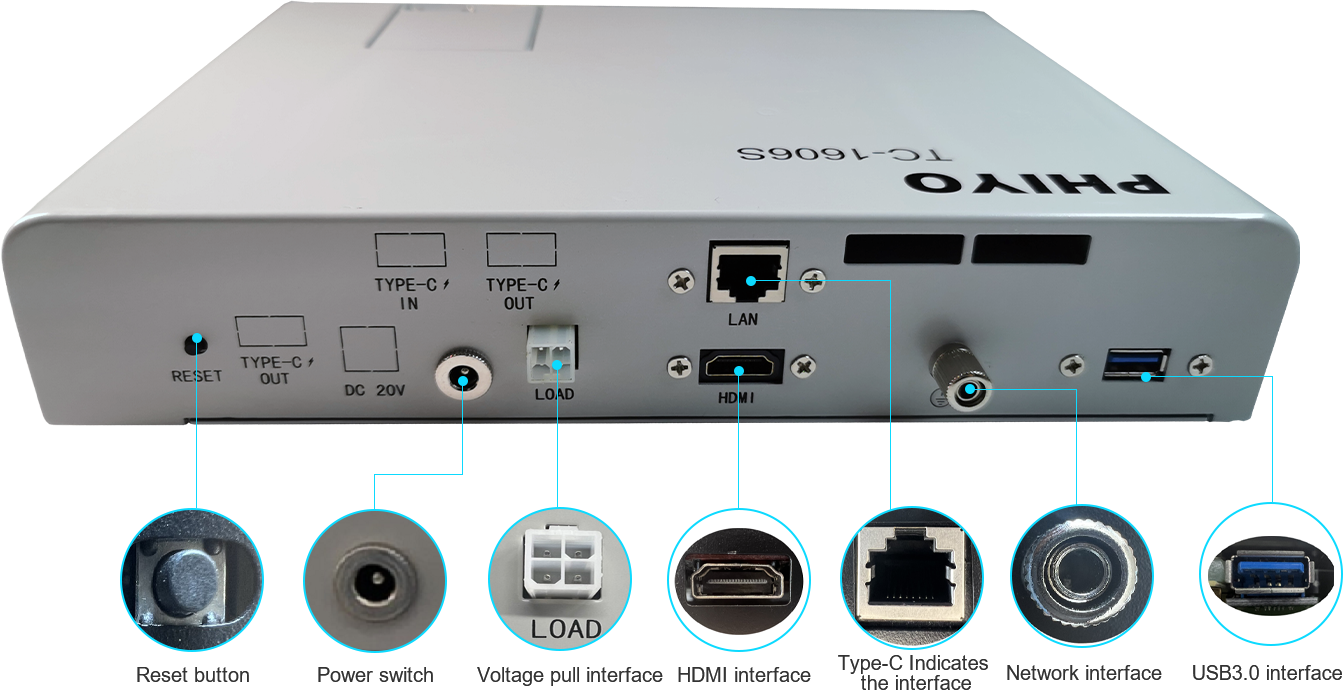

I/O port | USB3.0 Type-A*2, Type-C*1, HDMI*1, RJ45*1 | |
dimension | Bare machine size: 270mm*197mm*50.8mm | |
weight | 500G | |
Input power supply | DC:19V/90W | |
compatibility | Support operating system | windows10, windows 8.1, windows 8, Windows 7, Linux |
Type-C Indicates interface compatibility | USB3.0, DP1.2, HDMI1.4a | |
Use environment | Operating temperature range | - 10 ℃ ~ 60 ℃ |
Operating humidity range | 10%~85%, no condensation | |
Storage humidity range | 5%~95%, no condensation | |
Title | Description |
Version Download |
Q1: What is the operating system installed on this signal source product? |
Windows11 system, can restore the system one button, ensure the smooth system. |
Q2: Can this product be connected to peripherals for analog charging? |
This signal source is embedded with PD test board, which can detect PD charging function of external devices. |
Q3: What are the advantages of this signal source over traditional computers? |
Seamless interface test box, intelligent test, record test results. |
Q4: Does this signal source have a high failure rate? |
Industrial design, durable, independent interface design, low failure rate. |
Q5: What are the application areas of this product? |
Suitable for monitor motherboard and whole machine, hub, docking. |
Q6: Is this a replacement for Macs or computers with Type-C ports? |
You can replace it directly. This signal source is equipped with lightning interface for complete signal output. |
Q7: How long is this product hardware guaranteed? Does the software need to be updated regularly? Do I have to pay for the software upgrade? |
The hardware is usually guaranteed for one year. There is no need to upgrade the software when the machine type is suitable and the work is stable. Our customers enjoy the VIP rights of lifelong free software upgrade. |
Q8: What are the consumables of this product? |
The consumables are Type-C interface transfer boards. Modular design, easy to change. |
>
