·  Type-C& The Type-A signal output interface uses the modular design of the converter board, facilitating the replacement of consumables

·  Type-C signal output interface can detect the dock Type-C interface voltage, current, digital tube real-time display

·  Supports automatic switching between the front and back of Type-C ports on access devices

·  Support automatic test access device PD charging port front and back

·  The Type-C interface conversion board supports ICT tests

·  One-stop software intelligent test, record test results, seamless factory MES system

·  External answering button, one key to start the test, the indicator shows the overall test results

·  Complete design, can completely replace Apple computers and computers with Type-C interface

Hardware specification

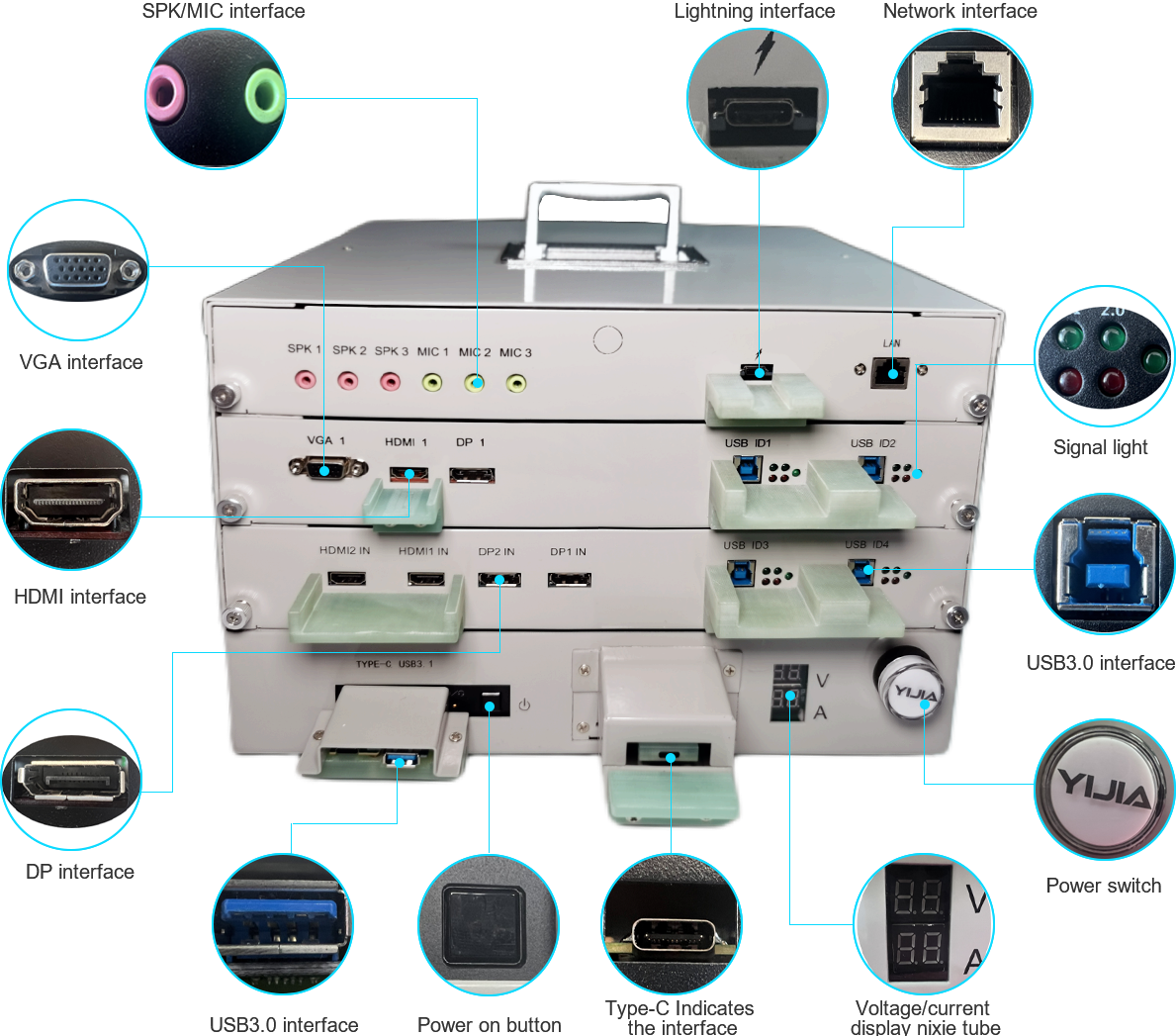

I/O port

USB3.1 Type-A*4 (Front *2, rear *2)

HDMI&VGA*1

RJ45*3((WAN*1,LAN*2 (Front *1, rear *1)) Type-C*1(Thunderbolt 3(40Gbps),USB3.1 Gen2 (10Gbps),DP1.2)

PD test module

PD3.0 (5 v, 9 v, 12 v, 15 v, 20 v)

Audio test module

MIC*3,SPK*3

Video test module one

DP1.2*1 (2K/4K@30HZ)

HDMI1.4a*1 (2K/4K@30HZ)

VGA*1 (1920*1080@60HZ)

Video test module two

DP1.2*2 (2K/4K@60HZ)

HDMI2.0*2 (2K/4K@60HZ)

USB3.0 test module

USB3.0*4 (compatible with 2.0)

dimension

Bare machine size: 330mm*290mm*315mm

weight

9.5 KG

Input power supply

AC:220V/50HZ

Use environment

Operating temperature range

- 10 ℃ ~ 60 ℃

Operating humidity range

20%~85%, no condensation

Storage humidity range

5%~95%, no condensation

Version

Download

V01

  Click Download

Windows11 system, can restore the system one button, ensure the smooth system.

Q2: What functions can this test signal source provide for one-stop testing?

Embedded PD protocol board, Type-C, USB, video, audio interface test board, can be one-stop detection of all interface functions of the external expansion dock.

Q3: What are the advantages of this signal source compared with the traditional measurement method?

Flexible and portable, fast test, accurate judgment, result traceability, low cost and high yield, full automation.

Q4: Does this signal source have a high failure rate?

Industrial design, durable, independent interface design, low failure rate.

Q5: What are the application areas of this product?

Suitable for monitor motherboard and whole machine, hub, docking.

Q6: Is this a replacement for Macs or computers with Type-C ports?

You can replace it directly. This signal source is equipped with lightning interface for complete signal output.

Q7: How long is this product hardware guaranteed? Does the software need to be updated regularly? Do I have to pay for the software upgrade?

The hardware is usually guaranteed for one year. There is no need to upgrade the software when the machine type is suitable and the work is stable. Our customers enjoy the VIP rights of lifelong free software upgrade.

Q8: What are the consumables of this product?

The consumables are Type-C&Type-A interface transfer board. Modular design, easy to change.

Q9: When using this product to test Type-C interface, do I need to manually switch the front and back sides?

No manual switch, support automatic switch back and forth test, single insertion, sequence detection of all functions on both sides.

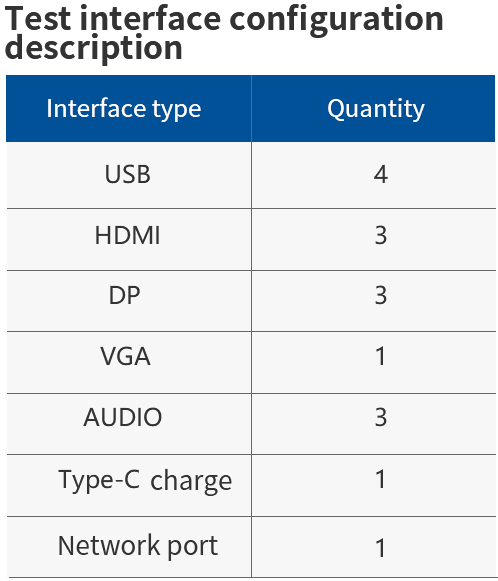

Q10: What is the configuration of the test interface of this product?

According to the customer's product (expansion dock) interface type and number, flexible configuration needs to test all kinds of interface and number;
